Tuya Smart Life Wi-Fi Digital Energy Meter 80A with Current Transformer Sensor Clamp App Monitor Power DIY 110V 240V 50/60Hz

SKU: 3256805603496325

$41

84 in stock

Add to wishlist
Compare
11 People watching this product now!

Fast Shipping

Carrier information

Various Products

Payment methods

24/7 Support

Unlimited help desk

5 Business Days Delivery

Track or off orders

Reviews
PRODUCT INFORMATION



SPECIFICATIONS:

  • Type: Wi-Fi Smart Switch Energy Meter
  • Model Number: 3256805603496325
  • Manufacturer: China
  • Certification: CE, RoHS
  • Output Voltage: 100 ~ 240VAC
  • Accuracy Class: 2%
  • Measuring Energy Range: 0.2A ~ 80A
  • Phase: single phase
  • Power Supply: AC
  • DIY Supplies: Electrical
  • App Name: Tuya Smart or Smart Life
  • Wi-Fi Frequency: 2.4Ghz, not support 5Ghz
  • Measure Range: 0.2A ~ 80A
  • In the App Can Display:
    • Hourly Elec. (KWh)
    • Today Elec. (KWh),
    • Monthly Elec. (KWh)
    • Yearly Elec. (KWh)
    • Current Ele(mA),
    • Current Power(W),
    • Current Voltage(V),
    • Total Ele(KWh)
  • Technical data:
    • Rated Voltage:100-240V AC 50/60Hz
    • Measurable Current Range: 0.2A – 80A
    • Wi-Fi Frequency:2.4GHZ
    • Ambient Temperature Range:-10°C ~ 55°C

NOTE:

  • Please note it’s not bidirectional meter, it can only measure the consumed power. and only show positive data on App.

  • The meter requires the measured device must have neutral wire. otherwise it can’t measure the device’s voltage, current, and power

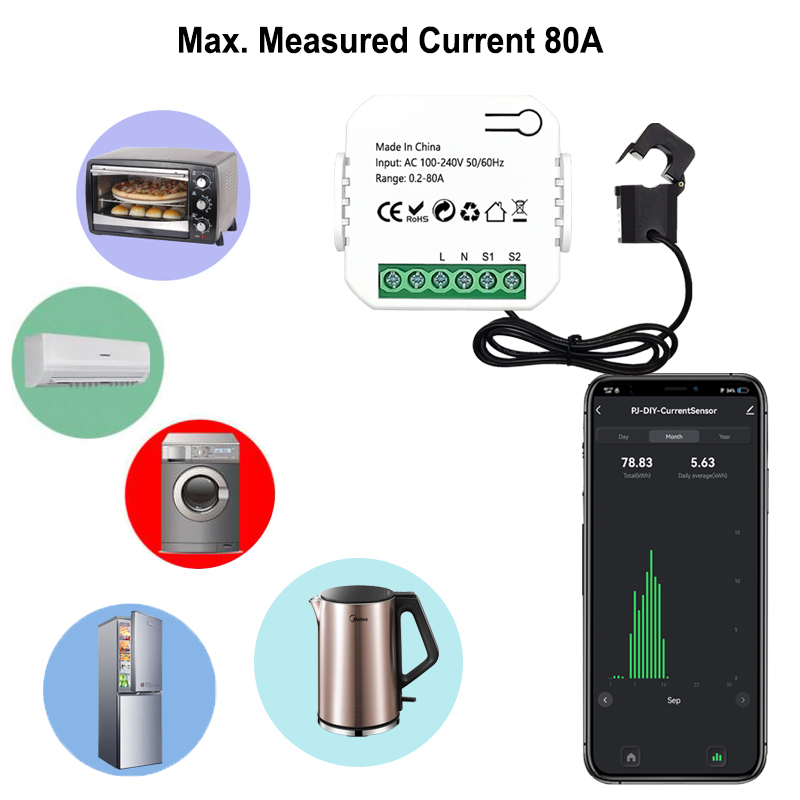

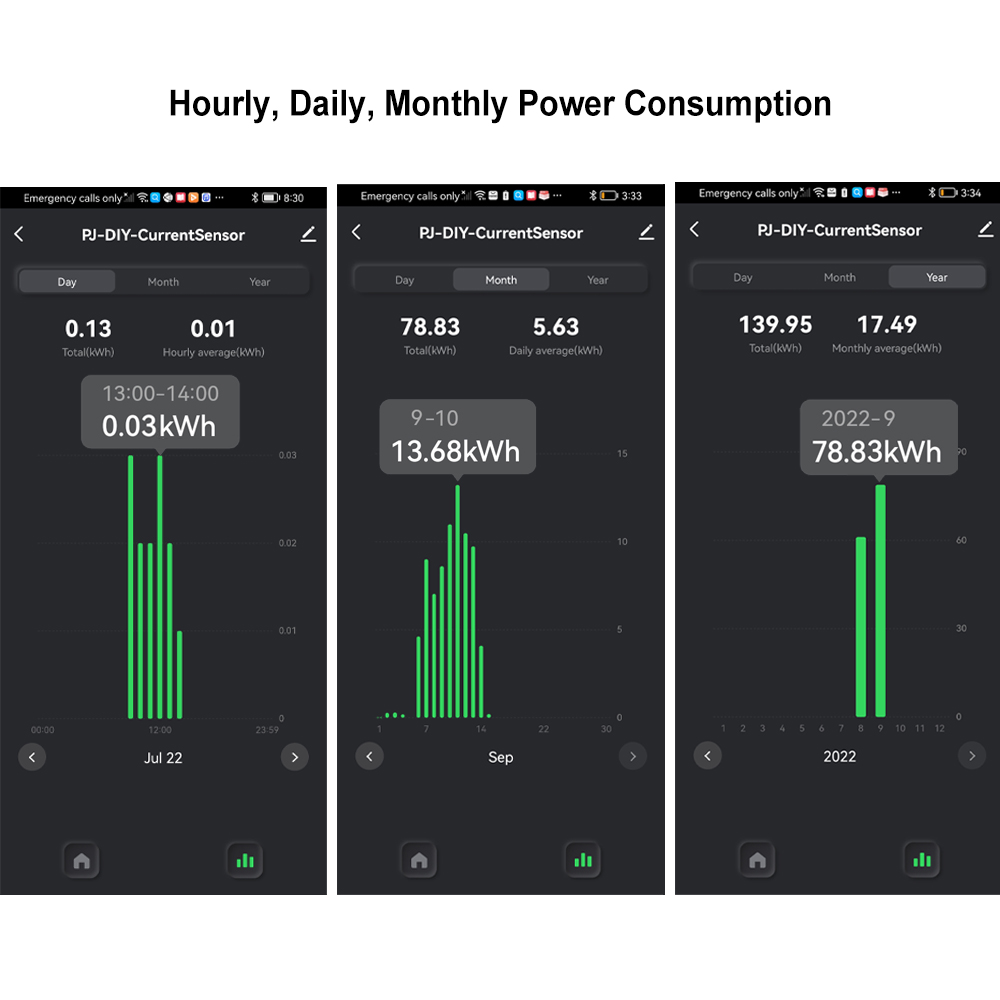

Electricity Statistic

  • You can view hourly , daily , monthly, Yearly and total KWh Consumed in App.

Monitor Power Usage Percentage from App

  • You can set power on App, and monitor the power usage percentage.

Monitor Device Working Status

Automation , It allows to make a Scene for this device working with other Tuya devices

  • Set Automation for the Measured Device
  • For example, If Power or Current Is over the Value, then other tuya device starts to work .

Automation. It allows to make a scene when the device turn off, send a notification

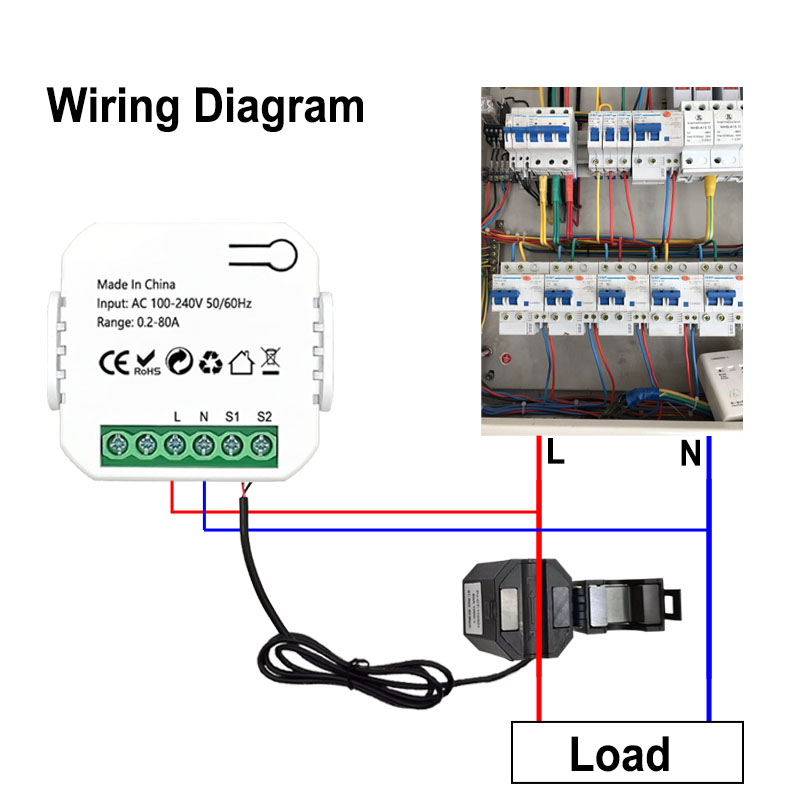

Easy and Safe to Install

  • Non-Connect to be safe.
    No need to change your wire connection, just put the wire into the clamp, then it can measure.

FAQ

Q 1: I suppose P= U*I, why the value shows on App is not correct ?
A 1: Please consider the cos(Φ).

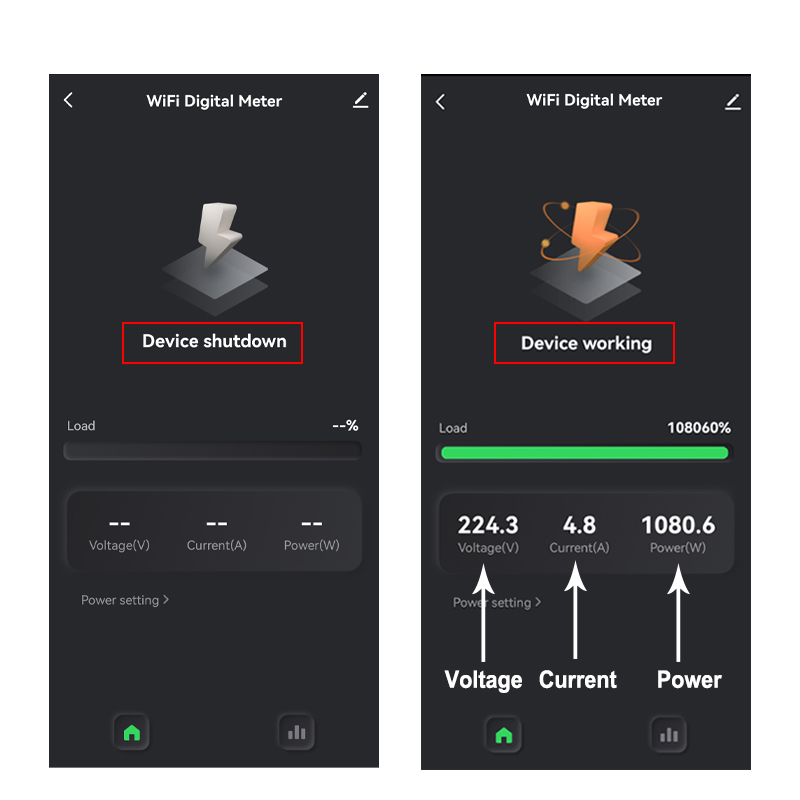

Q 2: After I configure it with App , why App shows ‘shutdown’ ?
A 2: Only if you put a device’s wire (either live wire or neutral wire, not both) in the clamp, and turn on the device, then the clamp can sense the current, and App will show it is working
Because As resistances do not produce any phasor difference (phase shift) between voltage and current waveforms, all the useful power is delivered directly to the resistance and converted to heat, light and work. Then the power consumed by a resistance is real power which is fundamentally the circuits average power.
To find the corresponding value of the real power the rms voltage and current values are multiplied by the cosine of the phase angle, Φ as shown.
Real Power P = I2R = V*I*cos(Φ) Watts, (W)
