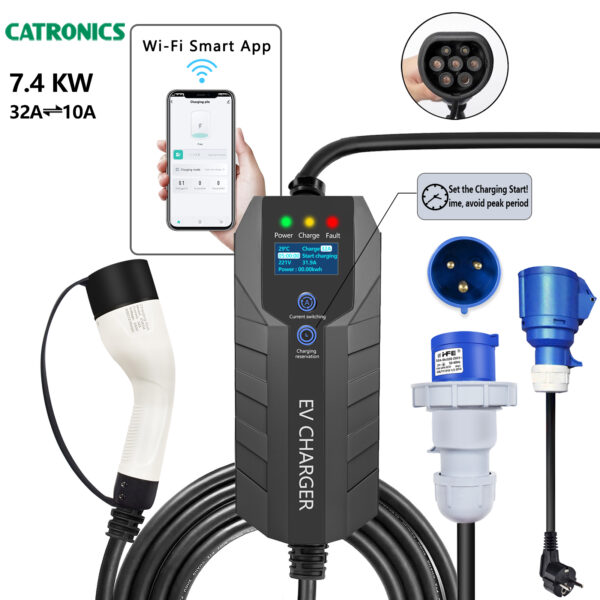

Portable Electric EV Charger Type2 7KW 32A 1 Phase Adjusting Current and Delayed Charging 5m CEE Plug Wi-Fi Smart App $440 – $734
Click to enlarge

Ship From EU and US 12V 24V 36V 48V 60V 72V 84V 96V MPPT Solar Charge Controller 30A 40A 60A Solar Panel PV Regulator 230VDC

SKU: 3256805634952488

$423 – $613

Clear
Add to wishlist
Compare
15 People watching this product now!

Fast Shipping

Carrier information

Various Products

Payment methods

24/7 Support

Unlimited help desk

5 Business Days Delivery

Track or off orders

Reviews
PRODUCT INFORMATION



SPECIFICATIONS:

  • Type: MPPT Solar Charge Controller
  • Model Number: 3256805634952488
  • Manufacturer: China
  • Certification: CE
  • Is for customized: Yes
  • Maximum Current: 60A
  • Model Number: 12V 24V 36V 48V 60V 72V 84V 96V MPPT Solar Charge Controller
  • Application: Charger Controller, Voltage Controller, Solar System Controller
  • Rated charging current: 30A 40A 60A
  • Charging mode: MPPT automatic maximum power tracking
  • charging mode: MPPT tracks maximum power, fast charging, balanced charging and floating charging

HIGHLIGHTS:

  • High performance and stable chip control
  • Automatically match with 12V/24V/24V/48V/60V/72V/84V/96V battery
  • Workable for battery: 1. Sealed( Lead-acid, GEL); 2. Lithium(Ternary Lithium, Lithium iron)
  • Charging parameter can be adjusted by yourself. Like” Charging voltage”, ” Charging Current”, ” Charging stop voltage”, ” Float Charging” and ” low voltage protection” and so on.
  • Max solar panel voltage input 230VDC , even though you use 12v system, you also can input 230V solar panel voltage.

BASIC FUNCTIONS:

  • Innovative maximum power point tracking technology, which can significantly improve the energy utilization rate of the solar system, and the conversion efficiency is as high as 97%
  • Quickly scan the entire I-V curve, and efficiently track the maximum power point
  • Three types of lead-acid batteries, sealed, colloidal, and open type, and lithium battery series charging programs are optional
  • With automatic protection functions for overcharge, over discharge, overload and short circuit
  • RS485 communication interface, multi-machine communication is possible, and it is convenient to view the operating parameters of the controller;

MPPT CONTROL FEATURES:

  • This controller is used in solar off-grid power generation system to automatically adjust battery charging and discharging. It has an advanced tracking algorithm to obtain the maximum power of the solar cell components and charge the battery; at the same time, its low voltage disconnect (LVD) function can prevent the battery from over-discharging and causing damage.
  • The battery charging process of the MPPT controller is optimized to extend battery life and improve system performance.
  • Its comprehensive self-test function and electronic protection function can avoid damage caused by installation errors and system failures. Although the controller is easy to operate and use, in order to allow you to better use all the functions of the controller and improve your photovoltaic system, please read the instructions and instructions in this manual carefully.

Parameter Table:



MPPT model 30A 40A 50A 60A 80A 100A
Rated charging current 30A 40A 50A 60A 80A 100A
Maximum PV Input Power 12v system 36ow 480w 600w 720w 960W 1200w
24v system 720w 960w 1200w 1400w 1920W 2400w
36v system 1080w 1440w 1800w 2160w 2880W 3600w
48V system 1440w 1920w 2400w 2880w 3840W 4800w
6ov system 1800w 2400w 3000w 3600w 4800W 6000w
72v system 2160w 2880w 3600w 7320w 5760W 7200w
84v system 2520w 3360w 4200w 5040w 6720W 8400w
96v system 2880w 3840w 4800w 5760w 9600w 9600w
Charging mode MPPT automatic maximum power tracking
charging mode MPPT tracks maximum power, fast charging,
balanced charging and floating charging
Battery type Lead acid battery (12V / 24v / 36v / 48v / 96v automatic identification)
+(12v / 24v / 36v / 48v / 6ov /72v/ 84v / 96v adjustable)
Gel Battery 12v / 2av/ 36v ] 48v / 6ov / 72v / 84v / 96v adjustable
Lithium iron
phosphate		 Unit voltage 3.2 * number of strings (2-45 adjustable)
Ternary lithium
battery		 Unit voltage 3.7 * number of strings (2-45 adjustable)
User defined Equalizing charge, floating charge,
DC discharge limit voltage adjustable: 8v — 170v
with lithium activation function with photovoltaic input, there is charging voltage (activate lithium battery),
and Dcoutput can be used without battery
Photovoltaic minimumvoltage start
Charging		 The photovoltaic voltage is greater than
+ 3v of the battery voltage (it can also be
charged with small current in rainy days)
PV maximum open circuit input voltage 0-230V 0-480V
Photovoltaic charging current adjustable 0-30A 0-40A 0-50A 0-60A 0-80A 0-100A
Dc current output (street lamp function) Dc continuous output 25A continuous output 60A Dc continuous output 100A
temperature compensation Automatically compensate the charging voltage and current
according to the battery temperature to prolong the battery life
LCD touch button LCD display: (generating capacity / photovoltaic voltage / battery voltage / charging
current / power / operation status)
Setting: (battery type, charging current, charging voltage and discharge voltage,return to factory),
Chinese and English display
485 communication 8-pin RS485 communication interface (operation status and
setting can be queried)
Working environment temperature ～-10℃一+45℃
Static power consumption 2w
overall efficiency 96.5%~99%
Temperature protection 85℃
Temperature rise protection Reduce power output above 8o ℃
Protection function Photovoltaic array short-circuit,over-voltage，over-current reverse connection
protection，battery overcharge，reverse connection protection，under voltageprotection
humidity o~90% RH (no condensation)
Mechanical protection level P21
Altitude 0~3000m
size 202mm*215mm*100mm 218mm*265mm*100mm
Net / gross weight 1.95KG 2.6KG
Package size 265mm*224mm*120mm 315mm*240mm*120mm
