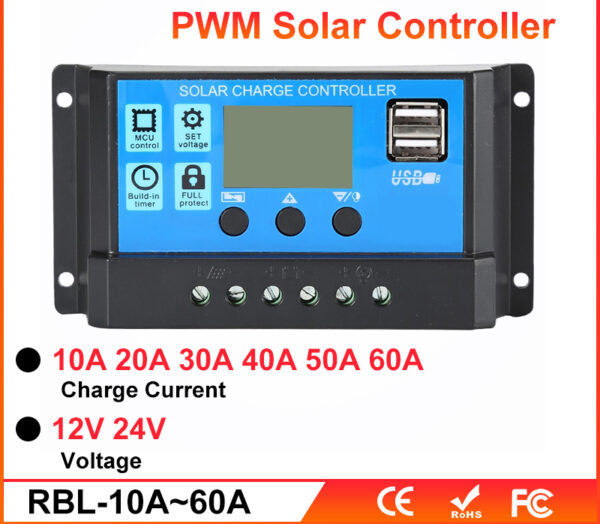

PowMr PWM 60A 50A 40A 30A 20A 10A Solar Charge and Discharge Controller 12V 24V Auto LCD Solar Regulator with Dual USB 5V NEW

SKU: 3256805303459929

$3 – $41,340

Clear
Add to wishlist
Compare
17 People watching this product now!

Fast Shipping

Carrier information

Various Products

Payment methods

24/7 Support

Unlimited help desk

5 Business Days Delivery

Track or off orders

Reviews
PRODUCT INFORMATION



SPECIFICATIONS:

  • Type: Solar Charge And Discharge Controller
  • Model Number: 3256805303459929
  • Manufacturer: China
  • Certification: CE
  • Is for customized: Yes
  • Maximum Current: 10A/20A/30A/40A/50A/60A
  • Model Number: RBL Series

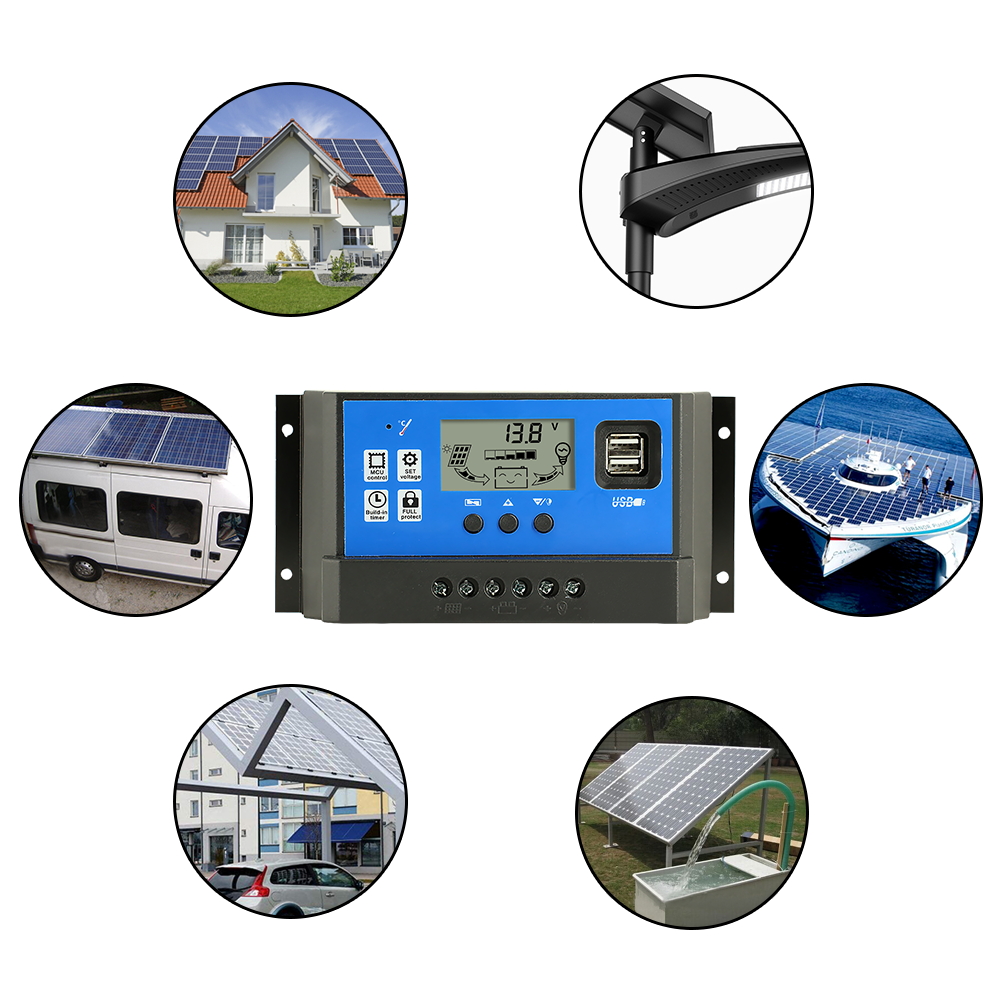

  • Application: Charger Controller, Voltage Controller ,Lighting Controller, Solar System Controller, Solar Working Station

INTRODUCTION:

  • This is very practical type PWM solar controller ,it is small and light ,you can use 12V and 24V Lead acid Gel, Sealed, Flooded, AGM Batteries. It can fully meet your home Photovoltaic system(including home lighting system )requirements
  • There are optional 10A 20A 30A 40A 50A 60A model

PRODUCT MODEL:

RBL-10A : Max PV Voc: 24V (12V), 48V (24V); Max PV Power: 120W (12V), 240W (24V);

RBL-20A : Max PV Voc: 24V (12V), 48V (24V); Max PV Power: 240W (12V), 480W (24V);

RBL-30A : Max PV Voc: 24V (12V), 48V (24V); Max PV Power: 360W (12V), 720W (24V);

RBL-40A : Max PV Voc: 24V (12V), 48V (24V); Max PV Power: 520W (12V), 1040W (24V);

RBL-50A : Max PV Voc: 24V (12V), 48V (24V); Max PV Power: 650W (12V), 1300W (24V);

RBL-60A : Max PV Voc: 24V (12V), 48V (24V); Max PV Power: 780W (12V), 1560W (24V);

Recently there are many similar products on the market, they have different prices and many sales, but please note that only here are 100% genuine and highest quality, we can provide permanent after-sales service, if you are reseller, We can give you free samples and competitive price !!!

FEATURES:

  • Build-in industrial micro controller.
  • Big LCD display, all adjustable parameter.
  • Fully 4-stage PWM charge management.
  • Build-in short-circuit protection, open-circuit protection, reverse protection, over-load protection.
  • Dual Mosfet Reverse current protection ,low heat production.

PRODUCT PARAMETERS:

MODEL

RBL-10A

RBL-20A

RBL-30A

RBL-40A

RBL-50A

RBL-60A

Battery Voltage

12V 24V Auto

Charging Current

10A

20A

30A

40A

50A

60A

Discharging Current

10A

10A

10A

20A

30A

30A

Max Solar input

48V(for 24V battery) 24V(for 12V battery)

Equalization

14.4V(Sealed) 14.2V(Gel) 14.6V(Flood)

Float charge

13.7V(defaul,adjustable)

Discharge stop

10.7V(defaul,adjustable)

Discharge reconnect

12.6V(defaul,adjustable)

Charge reconnect

13V

Voltage of open light

    Solar Panel 8V(Light lights delay)

Voltage of close light

Solar Panel 8V(Light off delay)

USB output

5V/3A

Self-consume

<10mA

Operating temperature

-35°C~+60°C

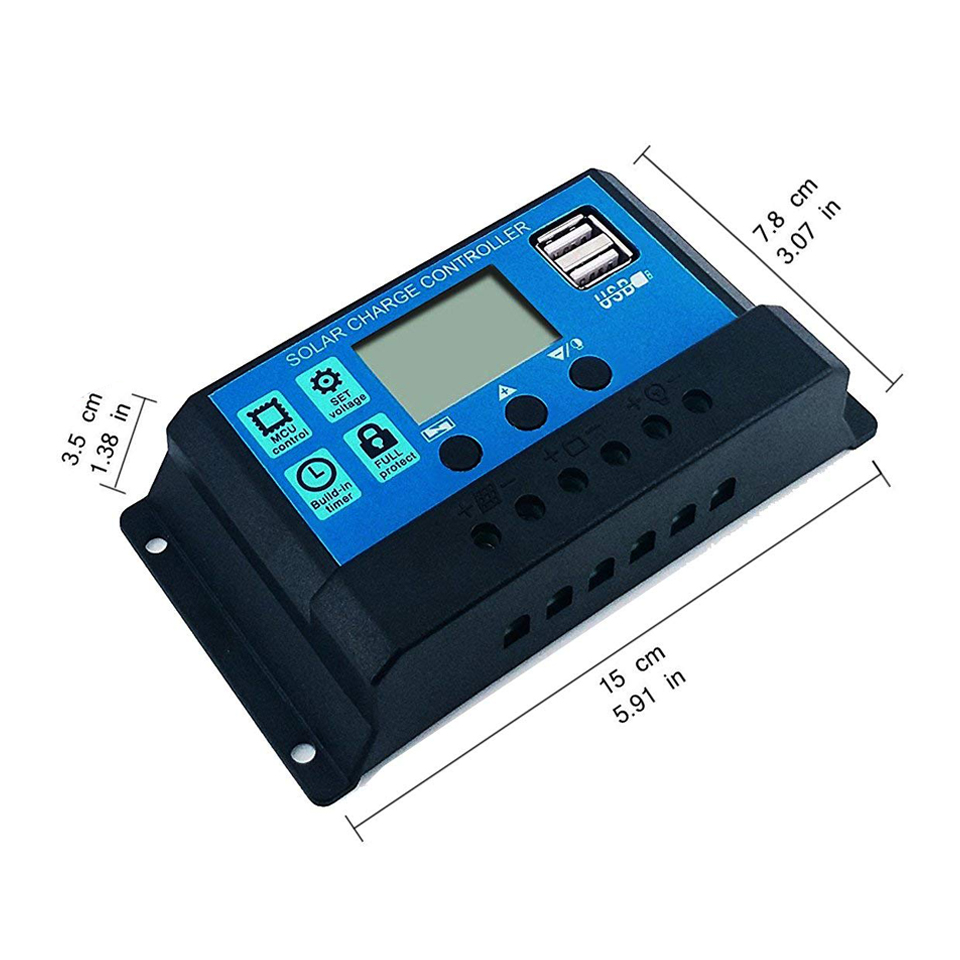

Size

133.5*70*35mm

188*90*47mm

CONNECTION:

  • Connect the battery to the charge regulator – plus and minus.
  • Connect the photovoltaic module to the regulator – plus and minus.
  • Connect the consumer to the charge regulator – plus and minus.
  • The reverse order applies when deinstalling!
  • An improper sequence order can damage the controller!

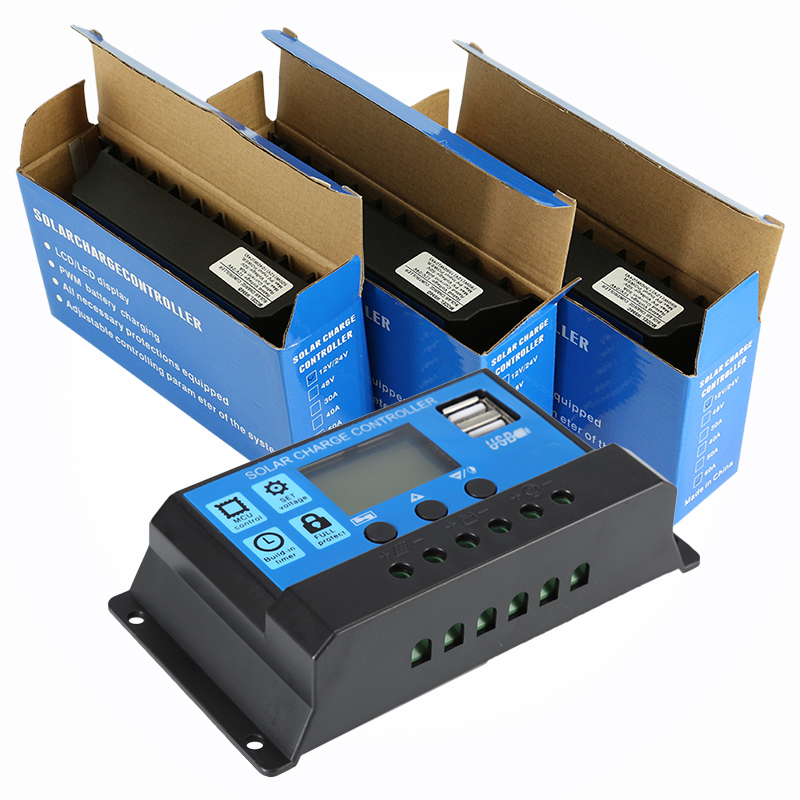

PRODUCT PICTURES:

Difference between 10A 20A 30A and 40A 50A 60A

RBL 10A 20A 30A

RBL 40A 50A 60A
