100A/80A/60A MPPT/PWM Solar Charge Controller 12V/24V/36V/48V Auto Controller Tools Solar PV Battery Charger with LCD & Dual USB $76 – $86
Click to enlarge

MPPT 40A 30A 20A Solar Charger Controller 12V 24V Auto LCD Display Dual USB Port Solar Panel Regulator Fit for Lithium Battery

SKU: 3256805617806286

$93 – $403

Clear
Add to wishlist
Compare
19 People watching this product now!

Fast Shipping

Carrier information

Various Products

Payment methods

24/7 Support

Unlimited help desk

5 Business Days Delivery

Track or off orders

Reviews
PRODUCT INFORMATION



SPECIFICATIONS:

  • Type: MPPT Solar Charge Controller
  • Model Number: 3256805617806286
  • Manufacturer: China
  • Certification: CE
  • Is for customized: Yes
  • Maximum Current: MPPT 20A 30A 40A
  • Model Number: POW-Keeper1220/POW-Keeper1230/POW-Keeper1240
  • Application: Charger Controller, Voltage Controller, Lighting Controller, Solar System Controller, Solar Working Station
  • System rated voltage: 12V/24V Auto work
  • High voltage disconnection(HVD): 16V(24V*2)
  • Voltage range of battery: 8-32V
  • Duration of absorption charging: 2Hours
  • Battery type: Seal, GEL, Flooded, LifePO4
  • Feature 1: Support PC monitor
  • Feature 2: MPPT Solar Charger
  • Item 1: MPPT 20A Solar Controller
  • Item 2: MPPT 30A Solar Controller
  • Item 3: MPPT 40A Solar Controller

HIGHLIGHTS:

  • Advanced MPPT maximum power point tracking technology, the tracking efficiency is no less than 99.5%.
  • High quality components are used to improve the system performance, and the maximum conversion efficiency can reach97%.
  • Super fast maximum power tracking speed while ensuring tracking efficiency.
  • Accurate identification and tracking of the maximum power point of multi-wave peak.
  • Reliable maximum input power of PV array to ensure the safety of equipment.
  • Wide PV array maximum power point operating voltage range.
  • 12/24v automatic voltage identification
  • The LCD is designed to dynamically display the operation data and working status of the equipment.

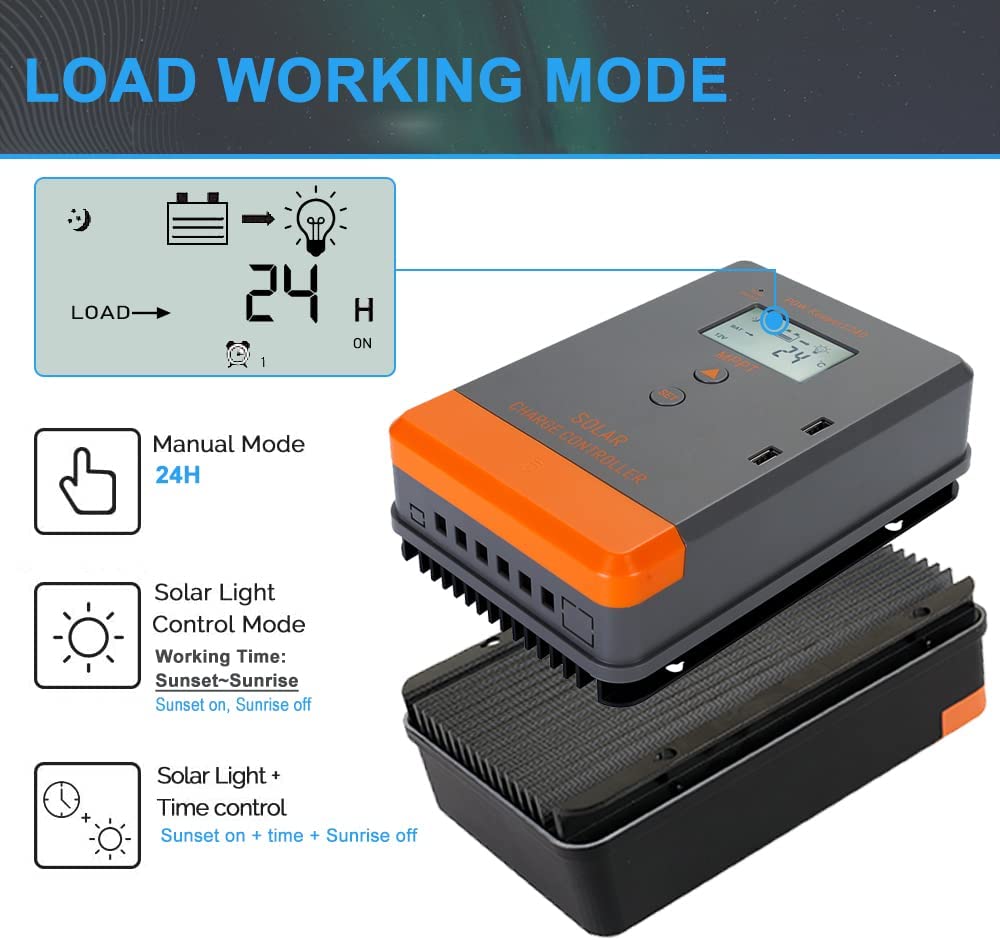

  • Various load control modes: general mode, light control mode, dual time mode, pure charger mode and timing mode.

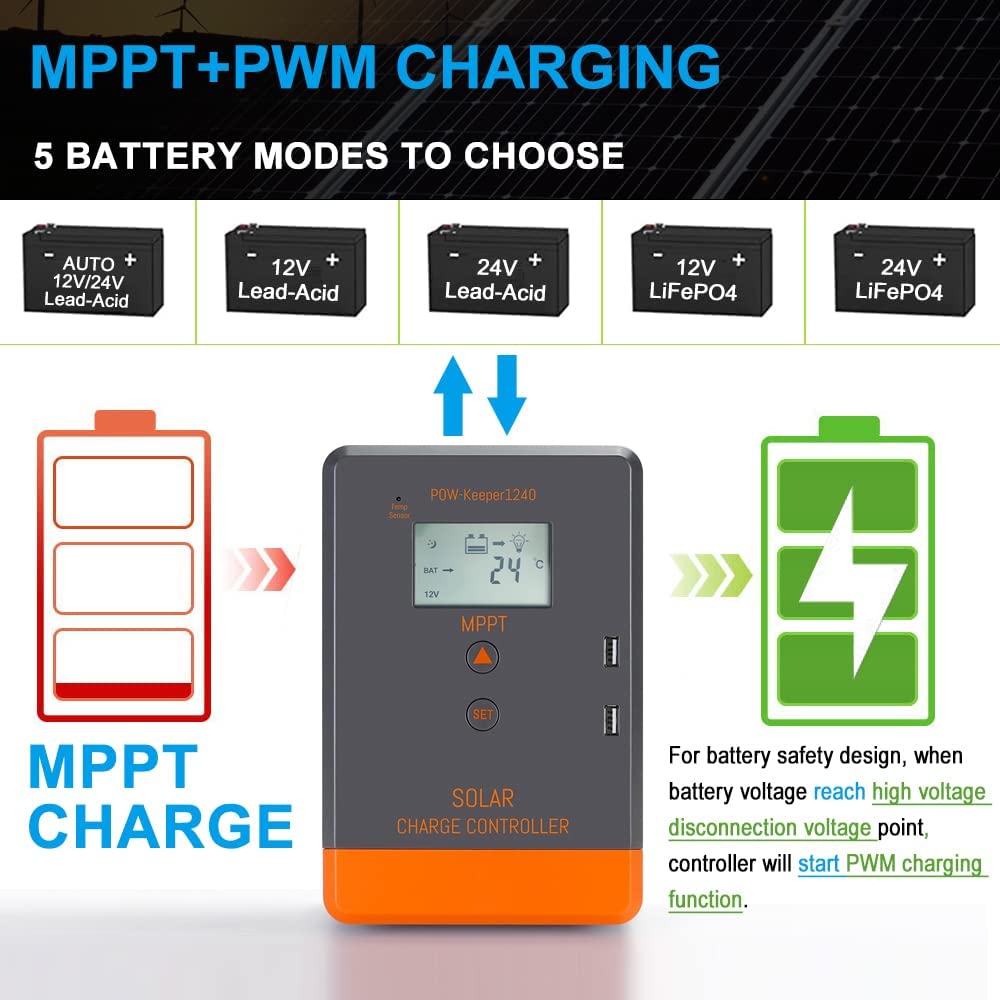

  • Seal, GEL, Flooded, LifePO4 and Li(NiCoMn)O2 charging process can be selected.
  • The function of battery temperature compensation.
  • Power statistics recording function.

PRODUCT PARAMETER:

Rated Charge Current

20A

30A

40A

System rated voltage

12V/24VAuto work

Voltage range of battery

8-32V

Max open voltage of PV module

50V

75V

100V

Battery Type

User default，Sealed，Flooded，GEL，LiFePO4

Equalized charging voltage

Maintenance-fee lead acid battery 14.6V, GEL: No; Lead acid flooded battery:14.8V

Absorption charging voltage

Maintenance-fee lead acid battery 14.4V, GEL:14.2; Lead acid flooded battery:14.6V

Floating charging voltage

Maintenance-fee lead acid battery, GEL, Lead acid flooded battery:13.8V

Low voltage re-connection(LVR)

Maintenance-fee lead acid battery, GEL, Lead acid flooded battery:12.6V

Low voltage disconnection(LVD)

Maintenance-fee lead acid battery, GEL, Lead acid flooded battery:10.8V

Static loss

≤9.2mA 12V; ≤11.7mA24V

High voltage disconnection(HVD)

16V(24V×2)

Duration of absorption charging

2 Hours

Light controlvoltage

5V

Charge loop voltage drop

≤0.29V

LCD Temperature

-20℃~+70℃

Operating Temperature

-20℃~+55℃(To run at full rated current continuously)

Working humidity

≤95% No condensation

Protection class

IP30

Dimension(LxWxH)mm

123×178×48

133×195×55

150×220×67

Installation hole size(LxW)mm

108×120ȼ5

116×140ȼ5

132×130ȼ5

Product Overview

  • 12V 24V 40Amp MPPT Controller w/LCD Display fit for 12V 24V AGM, Gel, Flooded and Lithium Battery







  • Work with Lithium or lead-acid battery charging parameter preset, Advanced MPPT maximum power point tracking technology solar charge controller, tracking efficiency is no less than 99.5%.
