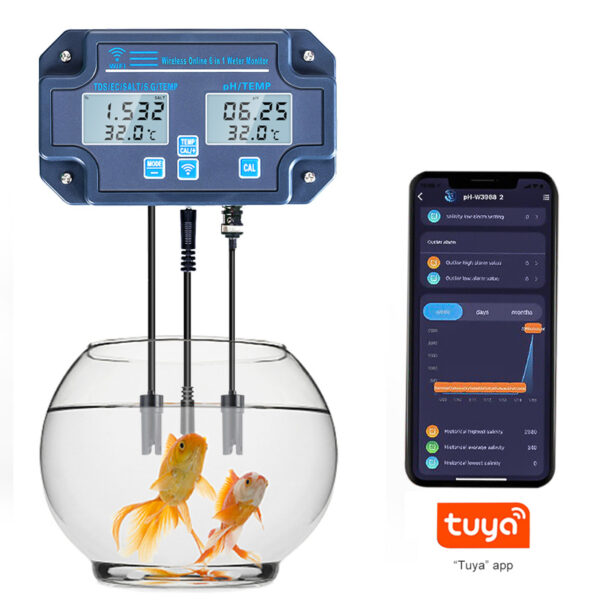

Smart Wi-Fi Online Water Quality Detector 6 IN 1 TDS EC PH Salinity G.S Temperature Tester PH Meter for Swimming Pool $350
Back to products
1500ML Oxygen Hydrogen Generator Device Hydrogen Inhalation Machine Low Noise 99.99% Hydrogen Water Generator Ionizer $5,084
Click to enlarge

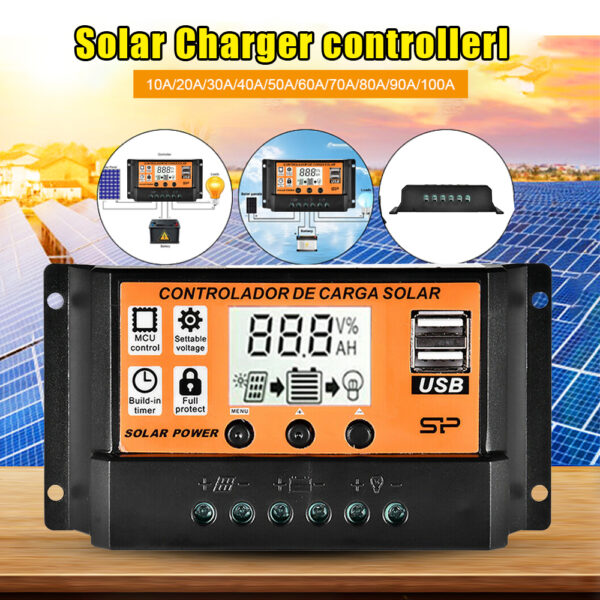

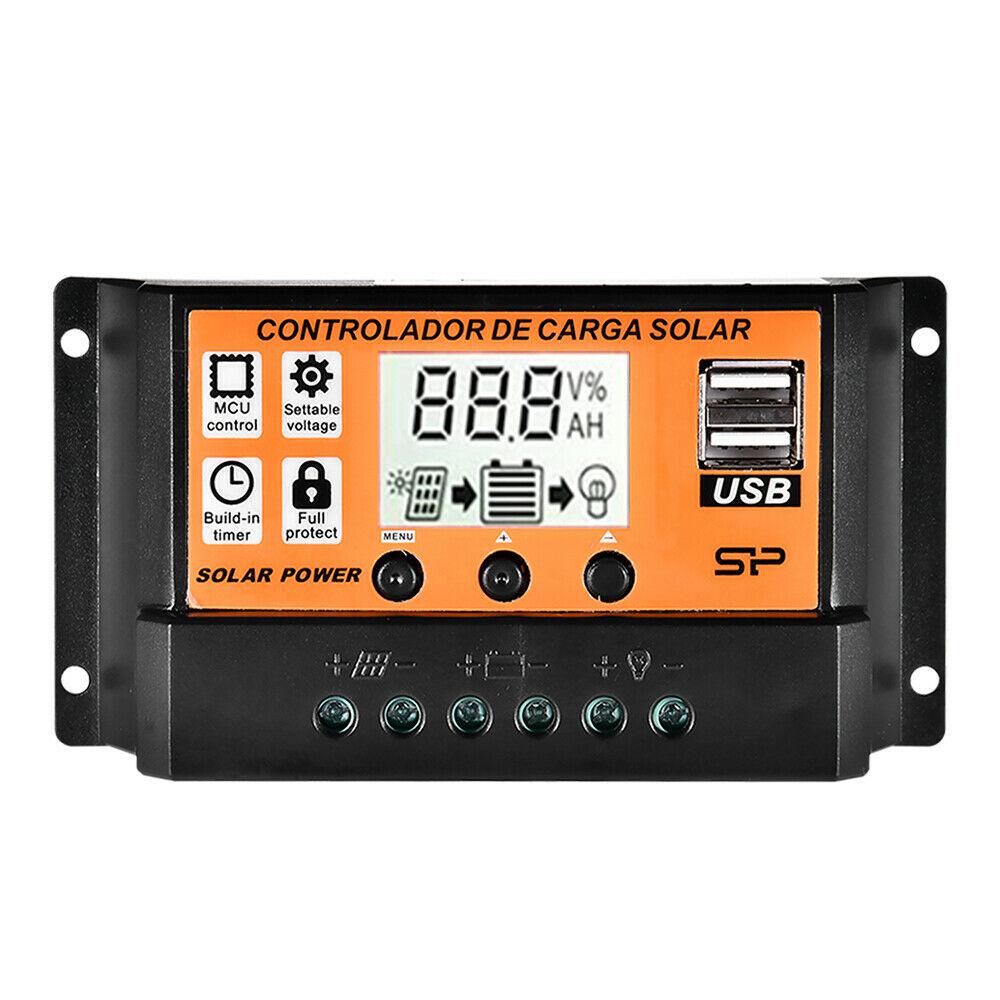

100A Solar Charge Controller Solar Panel Controller 12V/24V Adjustable LCD Display Solar Panel Battery Regulator With USB Port

SKU: 3256805011135804

$4 – $13

Clear
Add to wishlist
Compare
13 People watching this product now!

Fast Shipping

Carrier information

Various Products

Payment methods

24/7 Support

Unlimited help desk

5 Business Days Delivery

Track or off orders

Reviews
PRODUCT INFORMATION



SPECIFICATIONS:

  • Type: Solar Panels Battery Charge Controller
  • Model Number: 3256805011135804
  • Manufacturer: China
  • Is Smart Device: no
  • Is for customized: Yes
  • Maximum Current: 100A
  • Application: Thermal Controller, Charger Controller, Solar System Controller
  • Voltage: DC 12V / 24V
  • Display: LCD screen
  • Self-consumption: <10MA
  • Overcharge protection: 14.4V / 28.8V
  • Overcharge Float charge: 13.7V / 27.4V
  • Charge recovery voltage: 12.6V / 25.2V
  • Over discharge protection: 10.7V / 21.4V
  • Over discharge recovery: 12.6V / 25.2V
  • Dual USB output: 5V / 2A (charge mobile phone, iPad, etc.)
  • Working temperature: -35 ℃ -60 ℃
  • 12V fits 18V solar panel, 24V fits 36V solar panel
  • 12.0 volt lead acid battery corresponding
  • The float voltage is set to: 13.6
  • The recovery discharge voltage is set to: 12.6
  • The discharge cut-off voltage is set to: 10.7
  • 12.8 volt lithium iron phosphate battery corresponding
  • The float voltage is set to: 14.6
  • The recovery discharge voltage is set to: 13.6
  • The discharge cut-off voltage is set to: 11.0
  • 11.1 volt lithium battery corresponding
  • The float voltage is set to: 12.6
  • The recovery discharge voltage is set to: 11.6
  • The discharge cut-off voltage is set to: 9.6
  • The minute is adjustable when the output is turned off, which is more convenient (there is no adjustment when the market is only available).
  • PV system power Description:
    • 10A/20A/30A / 40A / 50A/ 60A /70A/80A/90/100A battery 12V photovoltaic system: power is respectively 100-1000W
    • 10A/20A/30A / 40A / 50A/ 60A /70A/80A/90/100A battery 24V photovoltaic system: power is respectively 200-2000W

HIGHLIGHTS:

  • Advanced maximum power point tracking (MPPT/PWM) technology, the efficiency is not less than 99.5%. High-quality components improve the system performance, and the maximum conversion efficiency is 98%. Super fast tracking speed and guarantee tracking efficiency.
  • Large screen LCD display, charge and discharge current display, cumulative power generation and discharge power query, temperature display, light control delay control; adjustable charge and discharge parameters, with power-off memory and other functions.
  • Dual USB output, the maximum current is 2.5A. Equipped with all necessary protection devices, the control parameters of the system are adjustable, easy to set up and operate. Built-in overheating, overcurrent, short circuit, open circuit protection, fault elimination, controller automatic recovery. Two-way MOS tube anti-backflow circuit, high-power charging mode, ultra- heat.
  • Built-in short circuit protection, open circuit protection, reverse connection protection, overload protection. Reverse current protection, low calorific , with self-recovery function, will not damage the controller.
  • Real-time display of temperature, charging current and discharge current. Current autofocus MPPT tracking charging, high charging efficiency, charging process does not stop detection, two-way focus tracking.

PACKAGE LIST:

  • 1X Solar Panels Battery Charge Controller
  • 1X User Manual

NOTES:

  • 1. The charge regulator is suitable for lead-acid batteries: OPEN, AGM, GEL, nickel hydride, lithium, Lions, or other batteries.
  • 2. This controller can only use photovoltaic panels as charging power. Do not use DC or other power as charging power.
  • 3.The LCD display has an error of 0.2 V- 0.3 V, but this is normal
  • 4. Old batteries may be degraded the capacity after hundreds of cycles, easily drop lower than 8V, which results in the controller will be shut off (LCD screen become totally “DEAD”).
