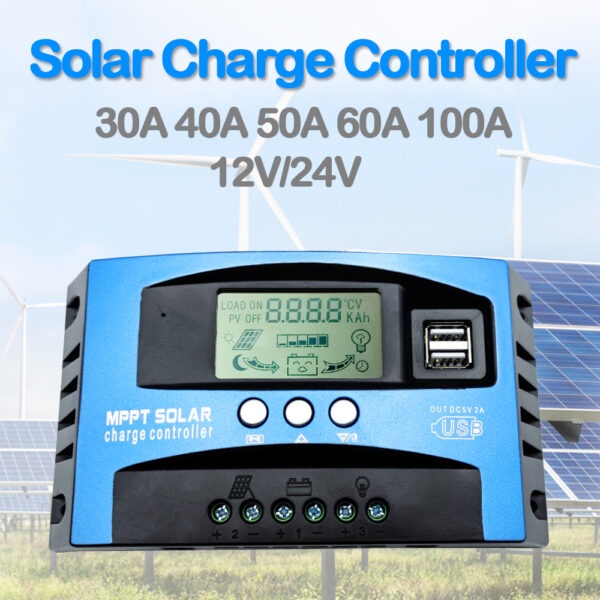

Solar Charge Controller MPPT 30A 40A 50A 60A 80A 100A LCD Display 12V 24V AUTO Dual USB Solar Charge And Discharge Controller $17 – $41,550
Click to enlarge

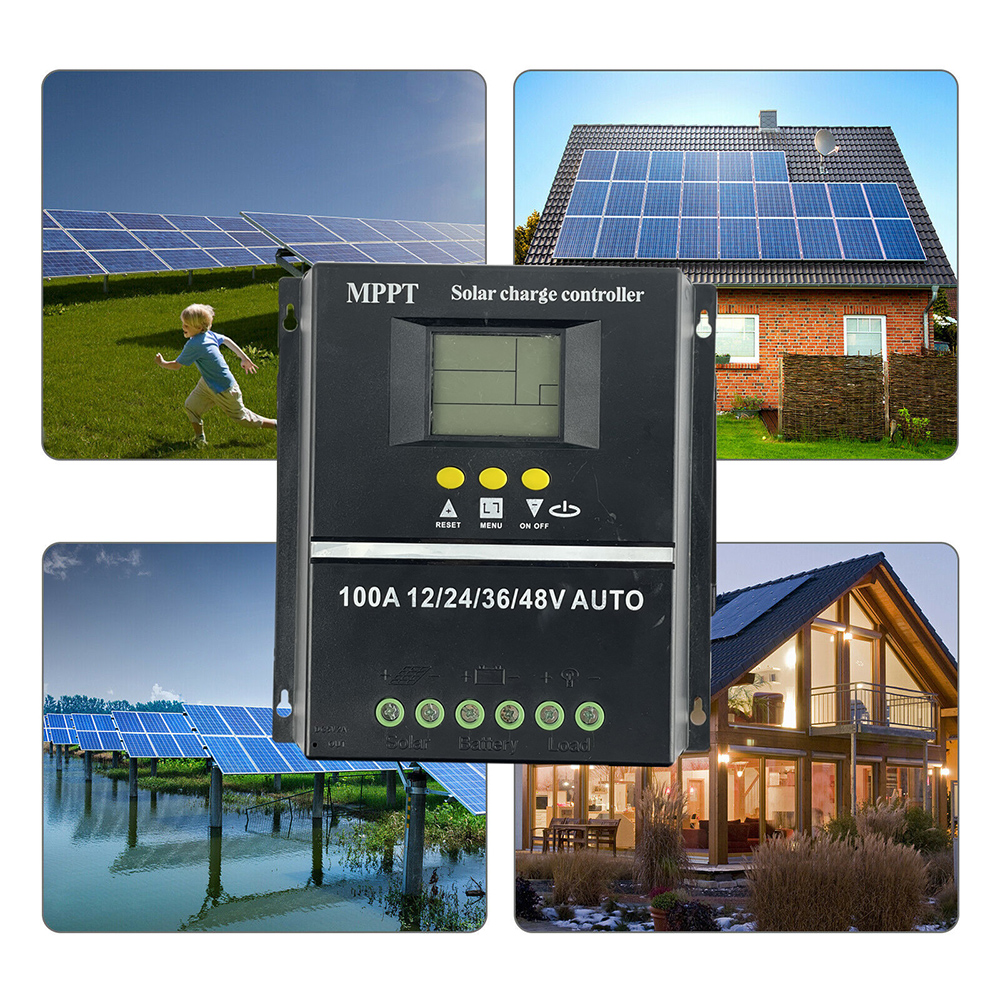

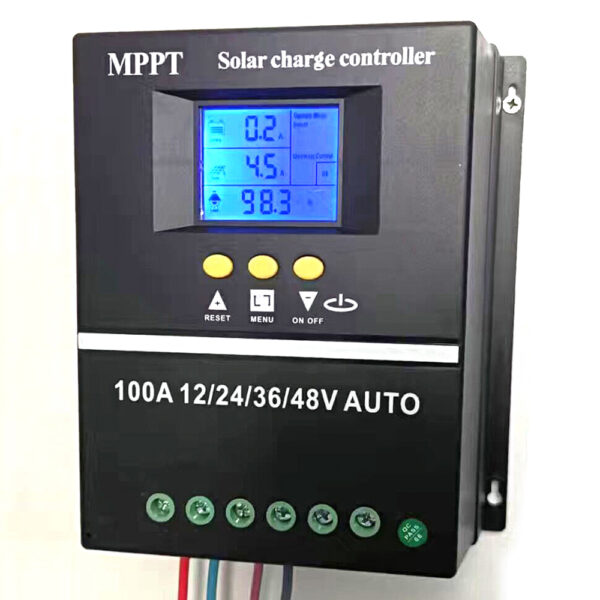

100A/80A/60A MPPT/PWM Solar Charge Controller 12V/24V/36V/48V Auto Controller Tools Solar PV Battery Charger with LCD & Dual USB

SKU: 3256804268234893

$76 – $86

Clear
Add to wishlist
Compare
14 People watching this product now!

Fast Shipping

Carrier information

Various Products

Payment methods

24/7 Support

Unlimited help desk

5 Business Days Delivery

Track or off orders

Reviews
PRODUCT INFORMATION



SPECIFICATIONS:

  • Type: MPPT/PWM Solar Charge Controller
  • Model Number: 3256804268234893
  • Manufacturer: China

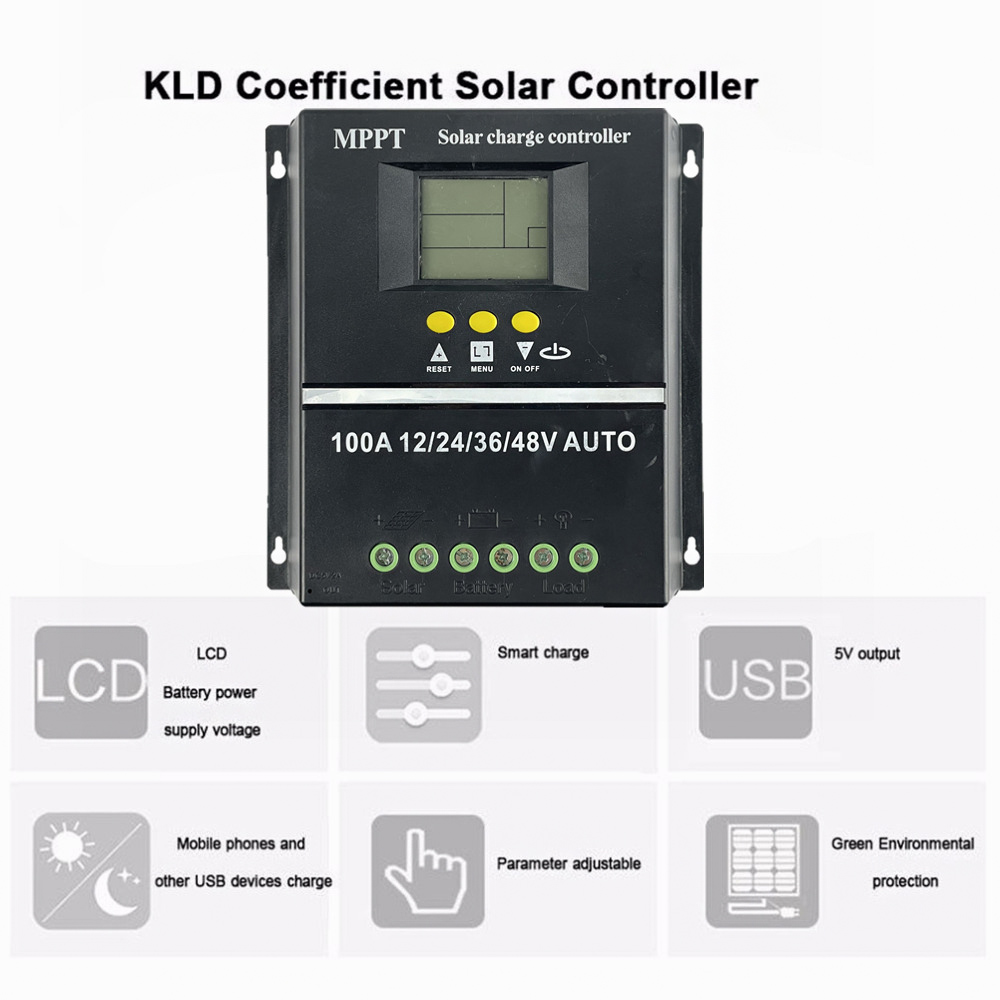

HIGHLIGHTS:

  • The controller is 12/24/36/48V auto, but the voltage of the photovoltaic panels used to charge different batteries is different.
  • For 12V batteries, use about 18V photovoltaic panels, for 24v batteries, use about 30-37V photovoltaic panels, and for 48V batteries use 60.

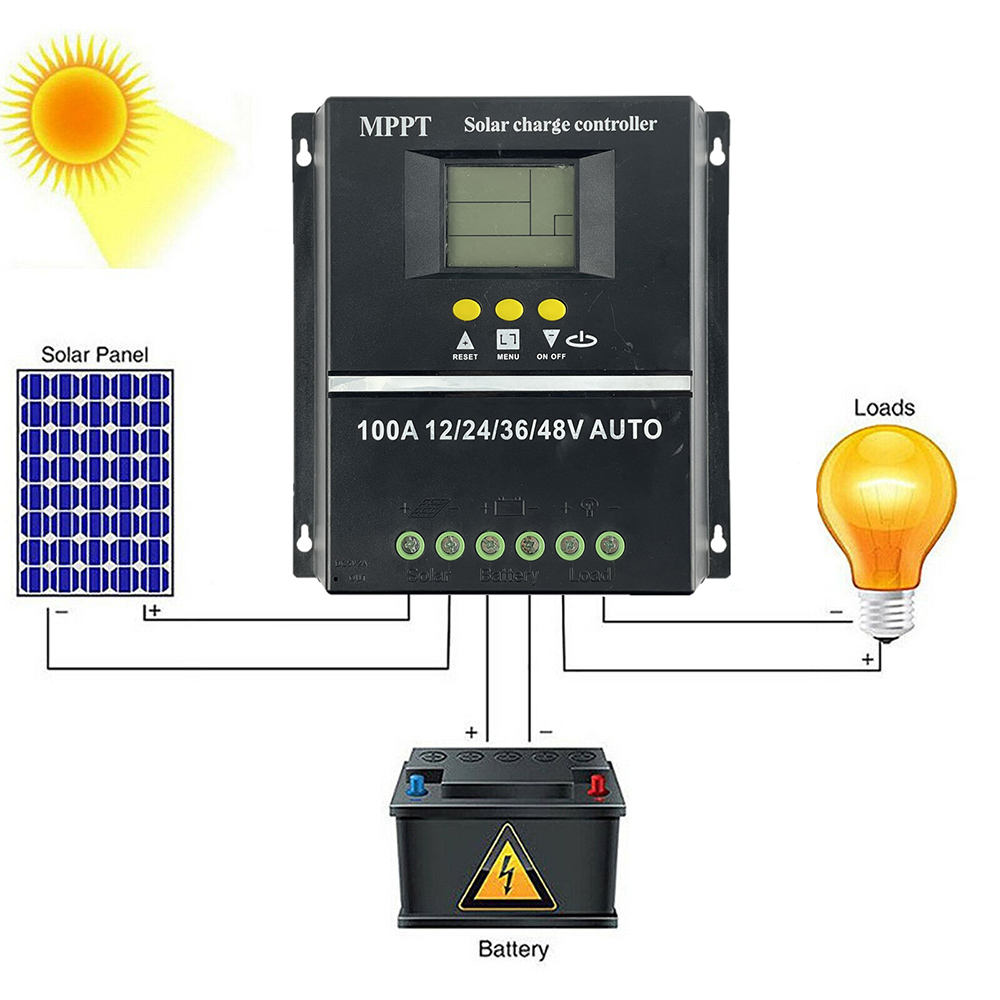

  • For photovoltaic panels around -72V, the controller wiring is connected to the battery first, and then to the photovoltaic panel.
  • Disconnect the wire on the contrary, otherwise it will easily cause damage to the controller! ! !

DESCRIPTIONS OF CHARGING PROTECTION:

  • When using a 12V battery, the boost charging voltage of the battery is higher than 14.8V, and it is converted to a floating charging voltage of 13.8V.
  • When using a 24V battery, the battery boost charging voltage is higher than 29.6V, and it changes to a float charging voltage of 27.6V.
  • When using a 36V battery, the battery boost charging voltage is higher than 44.4V, and it changes to a floating charging voltage of 41.4V.
  • When using a 48V battery, the battery boost charging voltage is higher than 59.2V, and it changes to a floating charging voltage of 55.2V.

Clock setting instructions:

  • When the battery is connected, press “â–²” “â–¼” to set the clock table, short press “â– ” to save.

Charging voltage setting instructions:

  • After connecting the battery, after setting the clock and saving, long press “â–²” for 3-5 seconds, the screen displays L**V as the floating charge voltage, which can be adjusted by pressing “â–¼”; short press again “â–²”H**V is to increase the charging voltage, which can be adjusted by pressing “â–¼”; shortly press “â–²” again. F**V is the low-voltage cut-off voltage of the DC load, which can be adjusted by pressing “â–¼”; after setting Long press “â–²” for 3-5 seconds to save and exit.

NOTE:

  • Please connect the battery to the controller first, and then the photovoltaic panel to ensure that the battery voltage is higher than (12V battery is higher than 10V; 24V battery is higher than 20V; 36V battery is higher than 30V; 48V battery is higher than 40V), otherwise it will cause voltage Identification error.

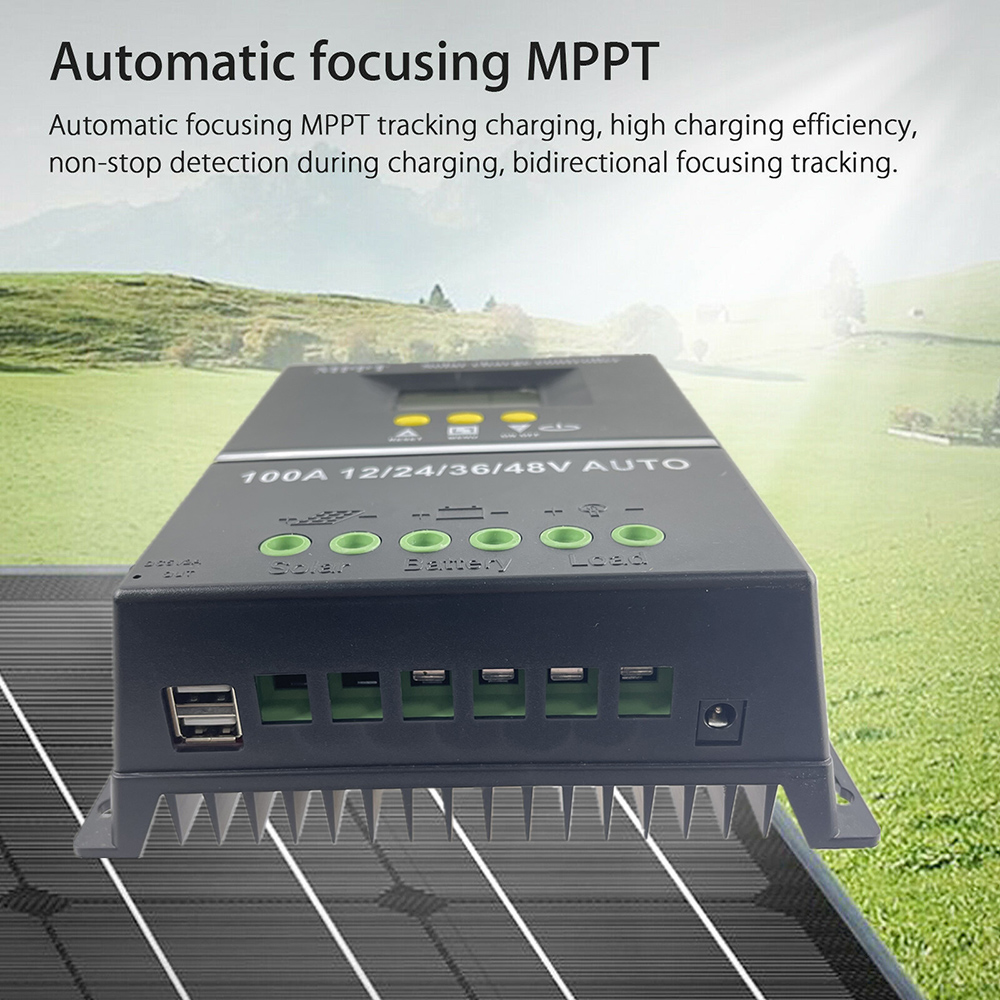

  • It is high quality compatible MPPT + PWM Solar Controllers ,not 100% Ture MPPT
